Products > STAINLESS WELDED PIPE

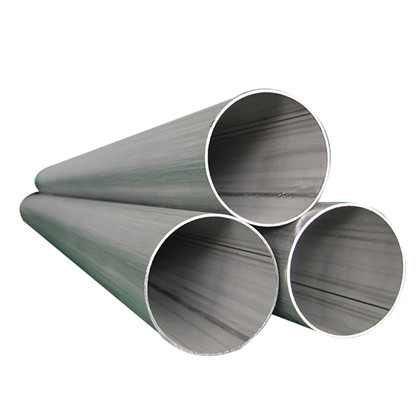

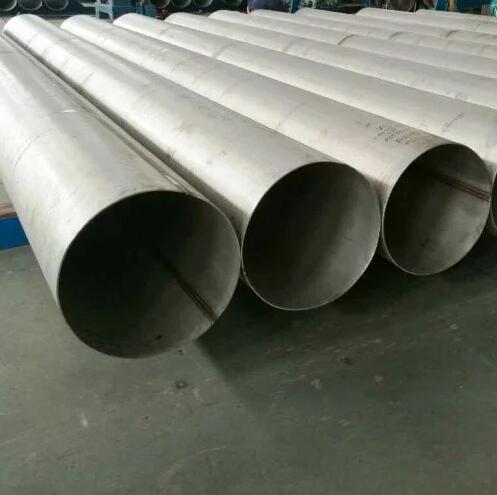

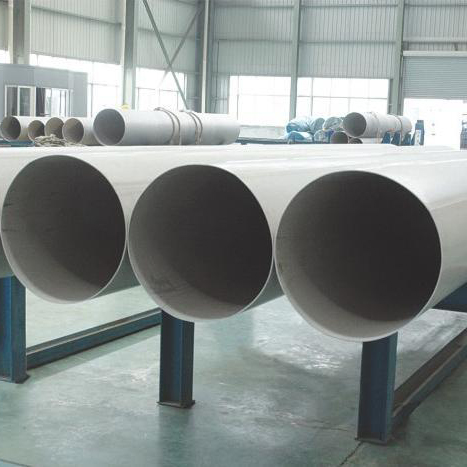

STAINLESS WELDED PIPE

• Keywords（pipe type）: Stainless Steel Pipe, Stainless Steel Tube, Stainless Steel Tubing
• Size:Outside Diameter: 1 1/8''~36''Wall Thickness: SCH 5, SCH 10S, SCH 40S, SCH 80S
• Standard:ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A778
• Steel Grades:304, 304/L, 304H, 310/S, 310H, 316, 316L, 321, 321H
• Surface:Annealed, Pickling, Polished
• Delivery:Within 30 days and Depends on your order quantity
• Payment:TT, LC , OA , D/P

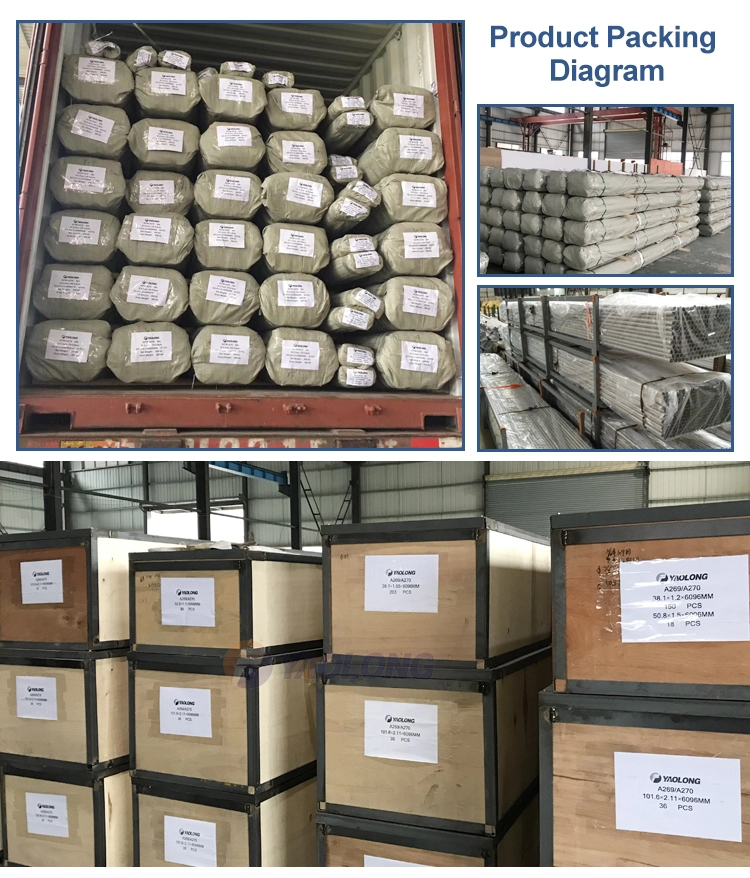

• Packing:Waterproof Paper Wrapped, Packed in Wooden Cabins
• Usage:In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

· Keywords（pipe type）: Stainless Steel Pipe, Stainless Steel Tube, Stainless Steel Tubing

· Size:Outside Diameter: 1 1/8''~36''Wall Thickness: SCH 5, SCH 10S, SCH 40S, SCH 80S

· Standard:ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A778

· Steel Grades:304, 304/L, 304H, 310/S, 310H, 316, 316L, 321, 321H

· Surface:Annealed, Pickling, Polished

· Delivery:Within 30 days and Depends on your order quantity

· Payment:TT, LC , OA , D/P

· Packing:Waterproof Paper Wrapped, Packed in Wooden Cabins

· Usage:In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts

Stainless Steel Heat Exchanger Tube
welding stainless steel sus304 condenser pipes 2 inch boiler tube
Standard	OD(mm)	WT(mm)	Length(meters)	Grade
ASTM A249, ASTM A269, EN 10217-7	15.88 to 114.3	0.3 to 4.0	Up to 18.3 meter	1.4301, 1.4306, 1.4404, AISI 304/304l/316l, S31803/S32205, etc
Standard	Outside Diameter		Thickness	Length
ASTM A249 (A1016)	<25.4	±0.10	±10%S	OD<50.8+3-0 OD≥50.8+5-0
	≥25.4~<38.1	±0.15
	≥38.1~<50.8	±0.20
	≥50.8~<63.5	±0.25
	≥63.5~<76.2	±0.31
ASTM A269 (A1016)	<38.1	±0.13	OD<12.7±15% OD≥12.7±10%	OD<38.1+3.2-0 OD≥38.1+4.8-0
	≥38.1~<88.9	±0.25
	≥88.9~<139.7	±0.38

Annealed, Pickling, Polished
